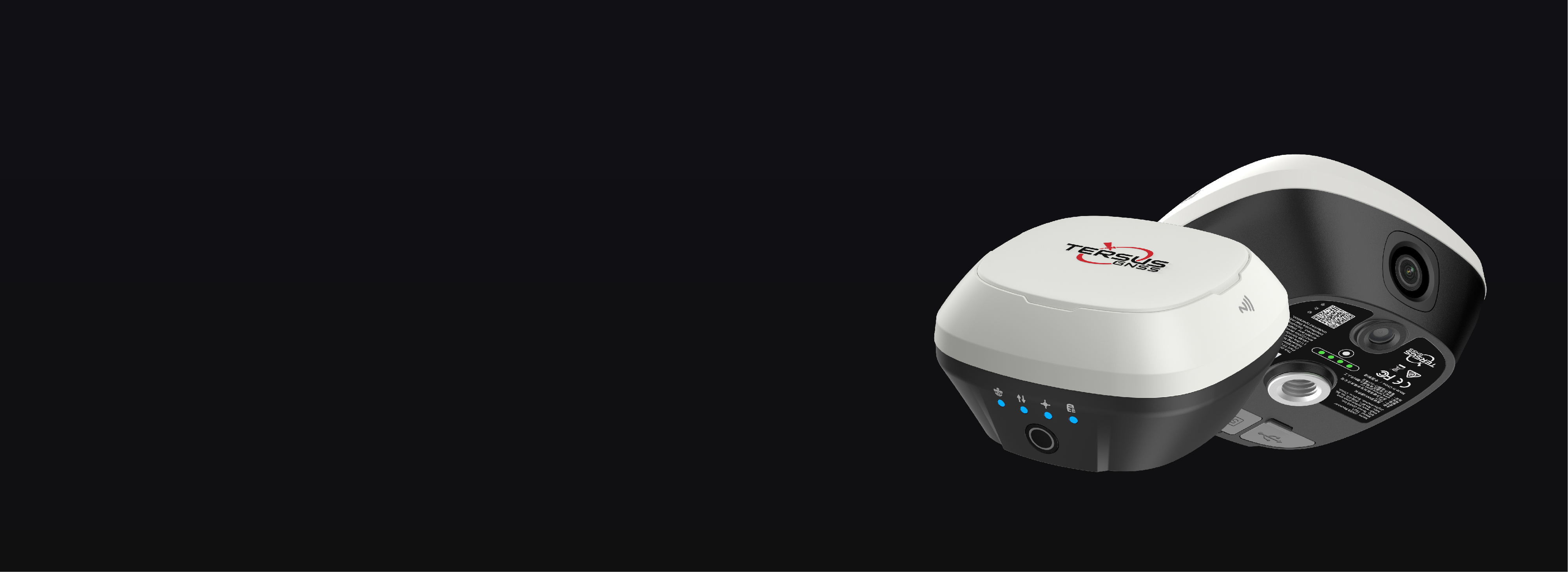

TS21/TS20 GNSS RTK Receiver
Visual Positioning and AR Stakeout

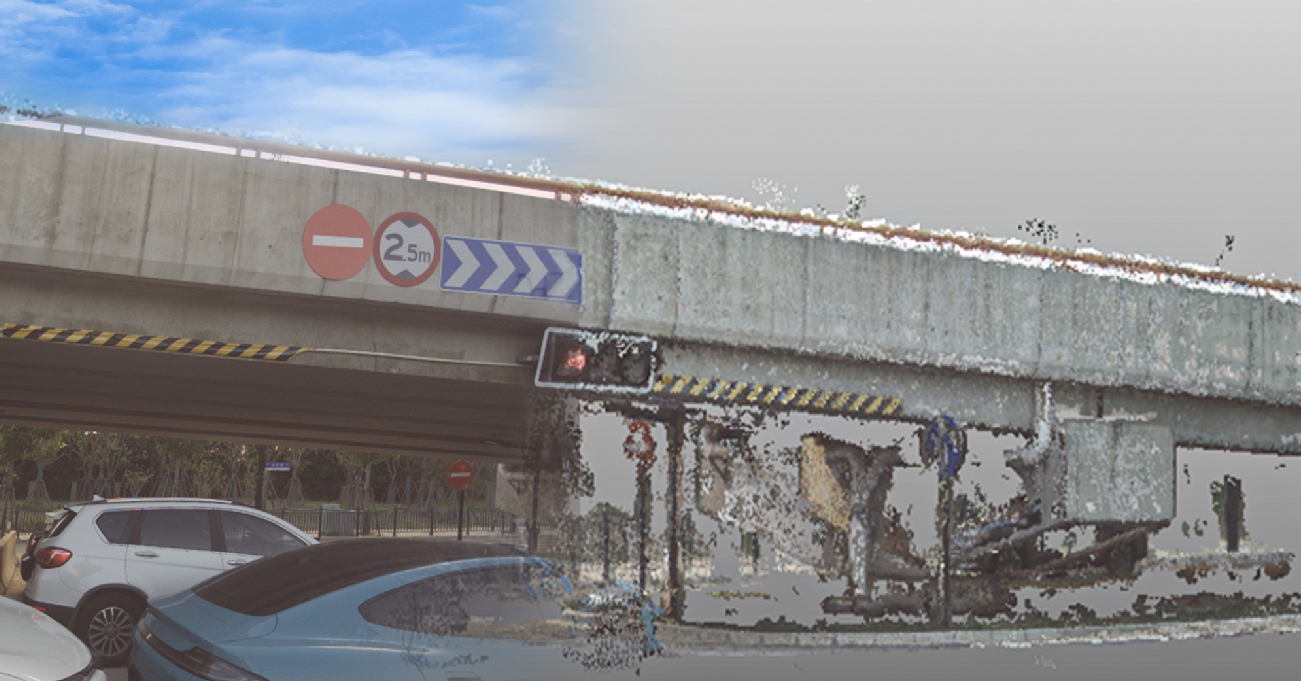

Point Cloud Measurement
Innovative visual measurement generates point clouds on site. Selecting points from photos directly corresponds to picking points within point clouds, eliminating the need for checking and adjustments.

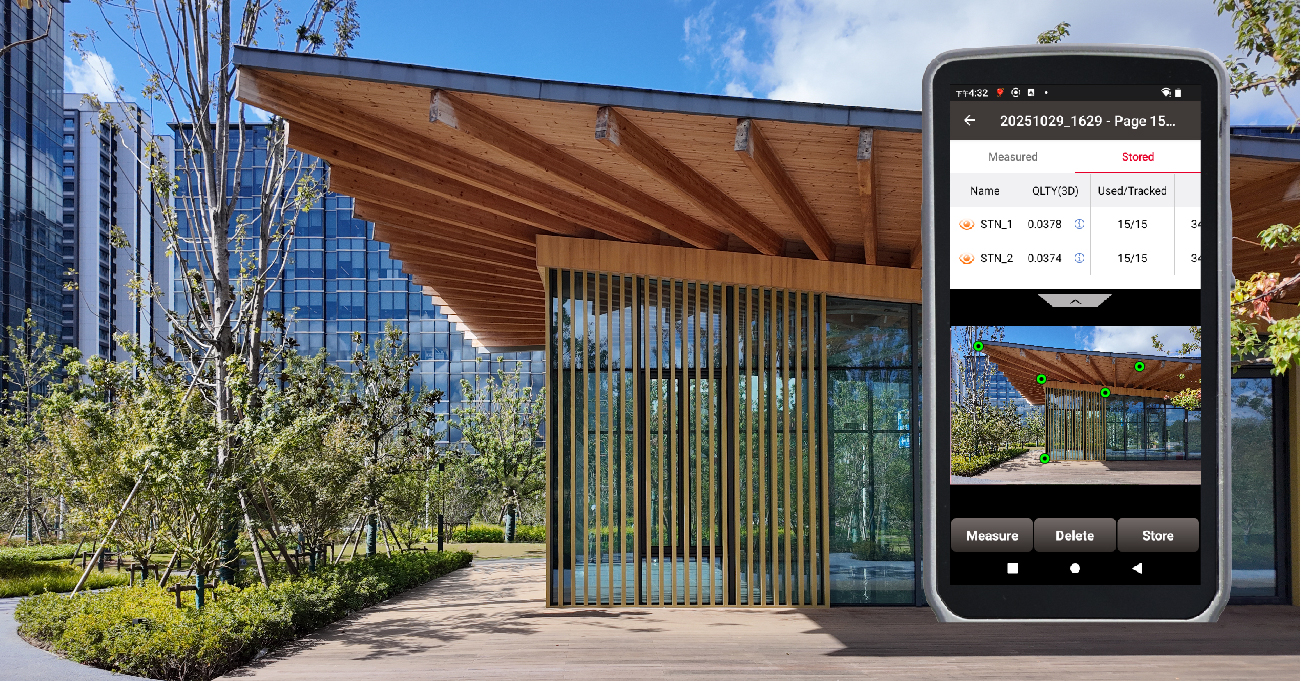

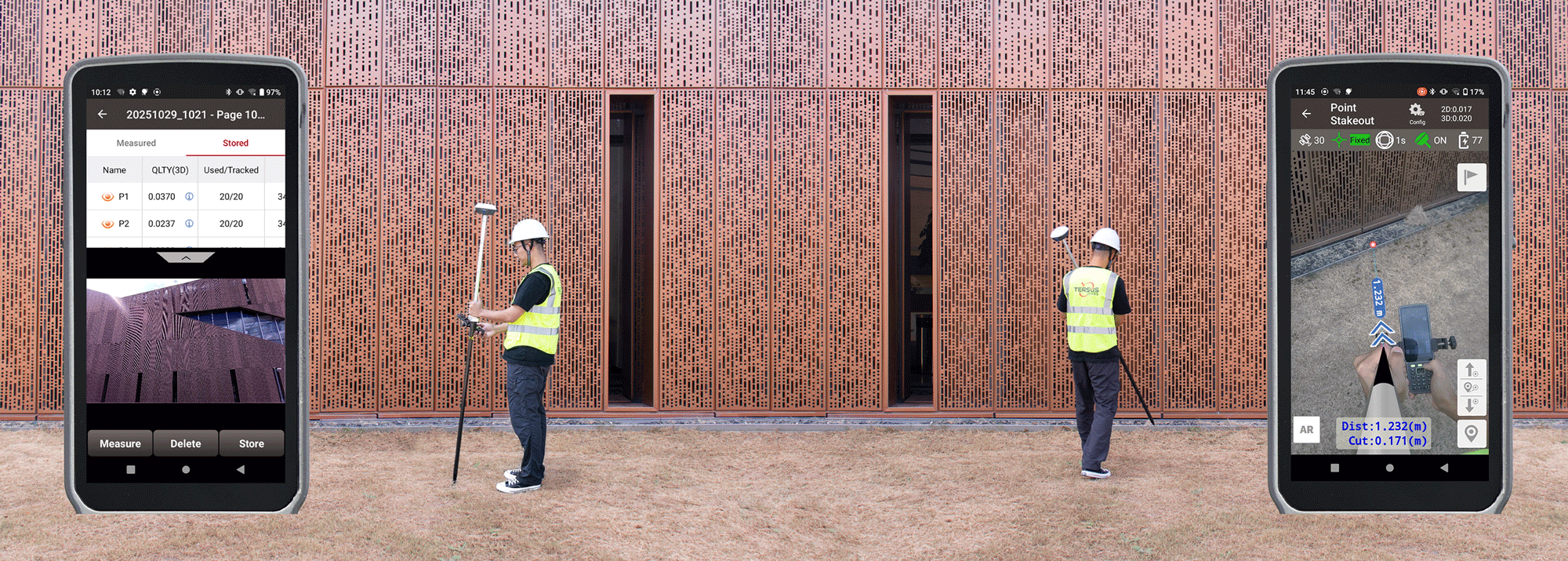

Measure What You See
Pick multiple points at a time to speed up your workflow, completing projects faster and efficiently. Perfect for hard-to-reach places and challenging terrains.

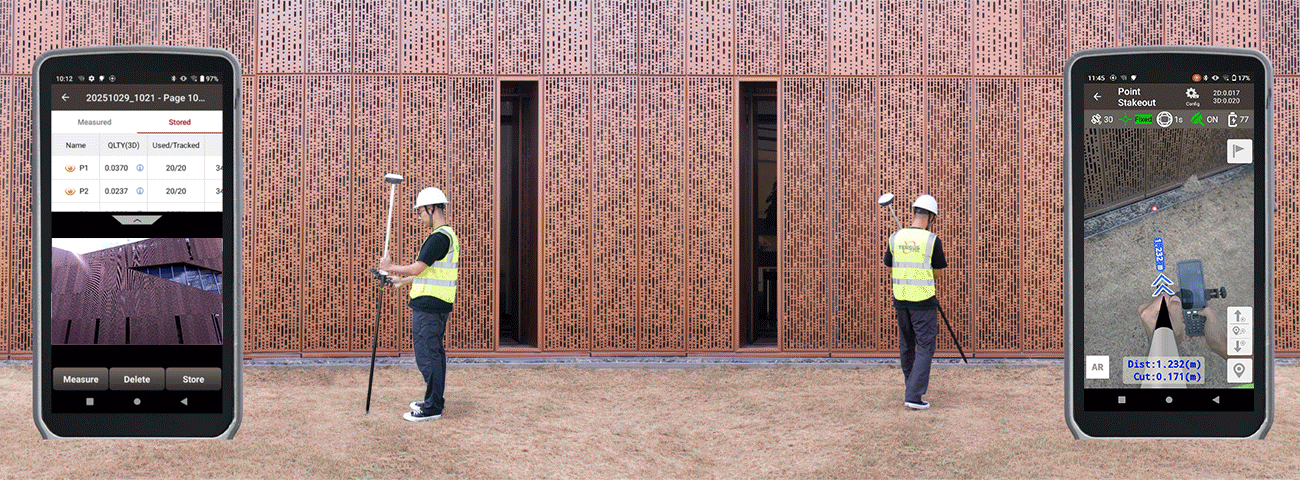

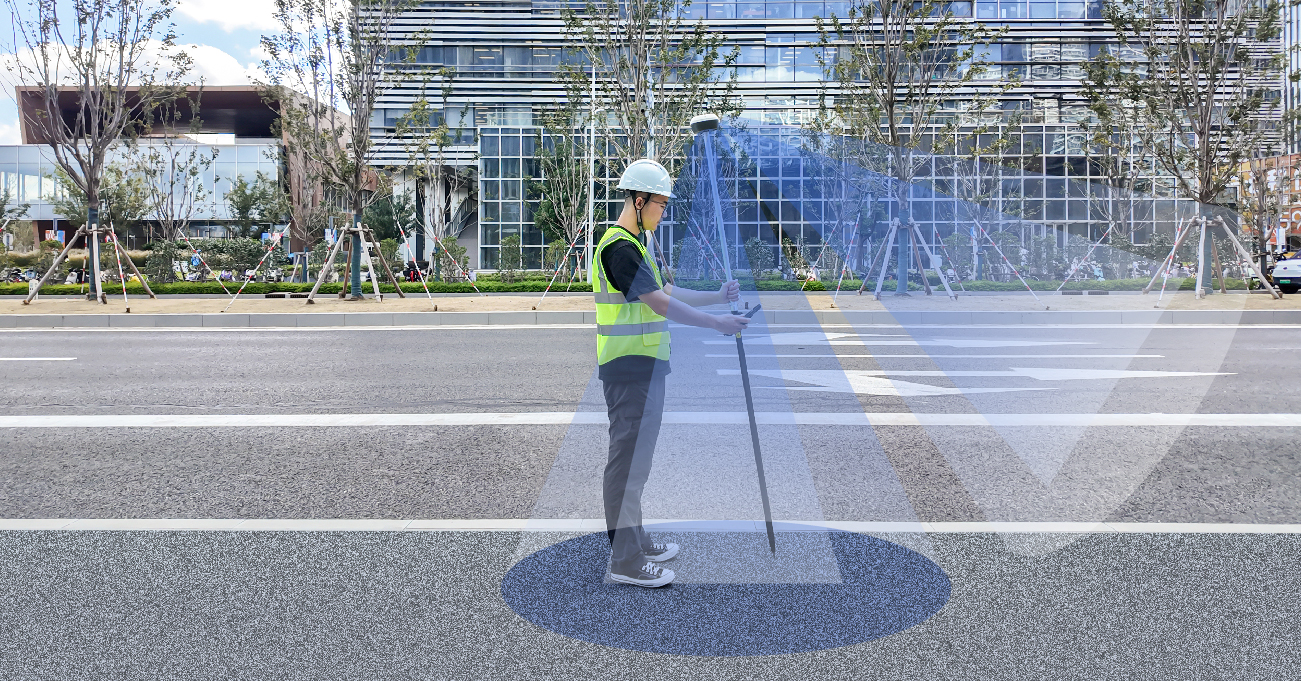

TwinCam Visual Stakeout™
Using the front and bottom cameras at different distances, targets are marked onto the live view to quickly locate point positions and improve stakeout efficiency by 70%

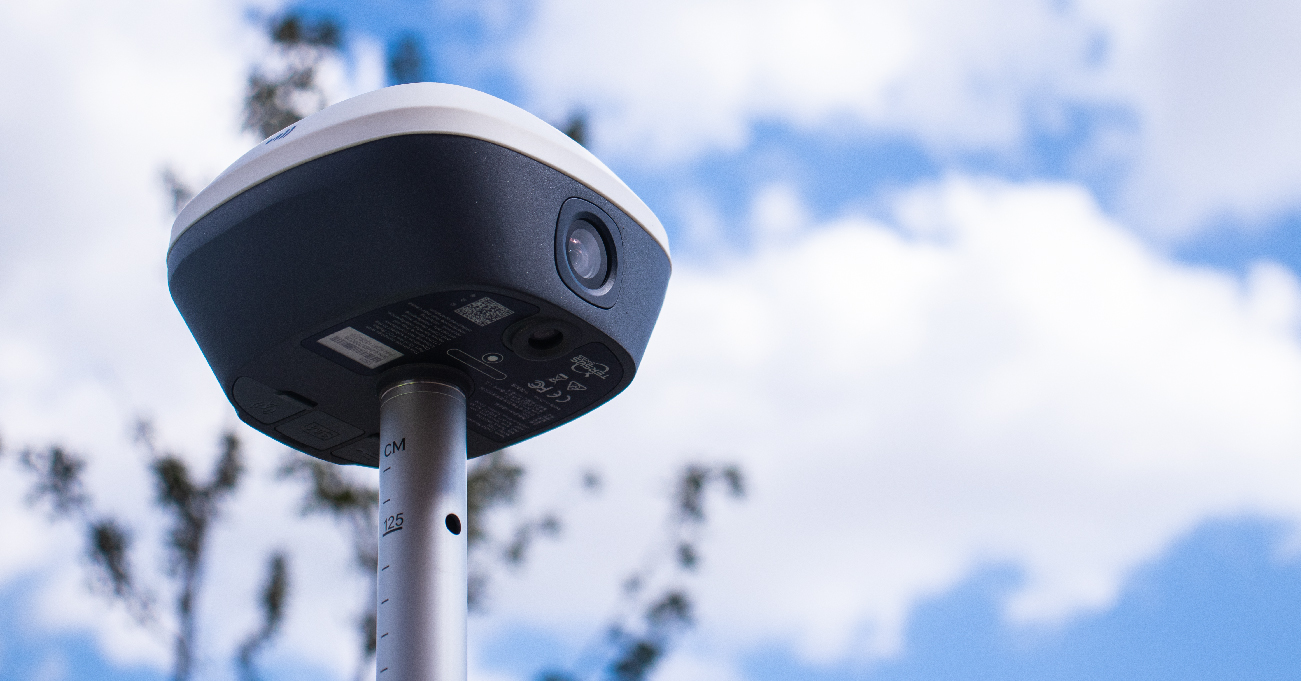

Professional Cameras
The high-performance global shutter camera, low-distortion lens, and advanced algorithms achieve 2–4 cm accuracy, while the intelligent processor provides clear images for precise visual positioning and AR stakeout.

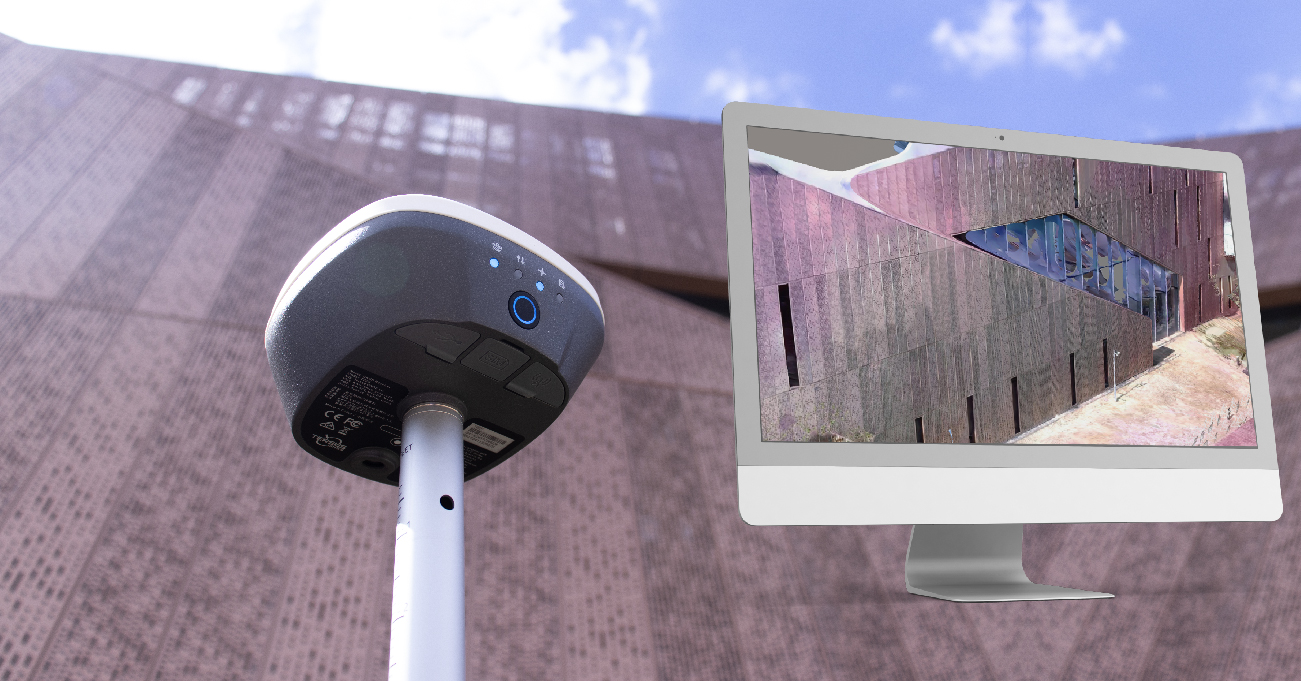

3D Modeling
Compatible with mainstream 3D modeling software, uses raw visual survey data for accurate and flexible post-processing to create detailed, high-precision, visually realistic 3D models.
Design for Field

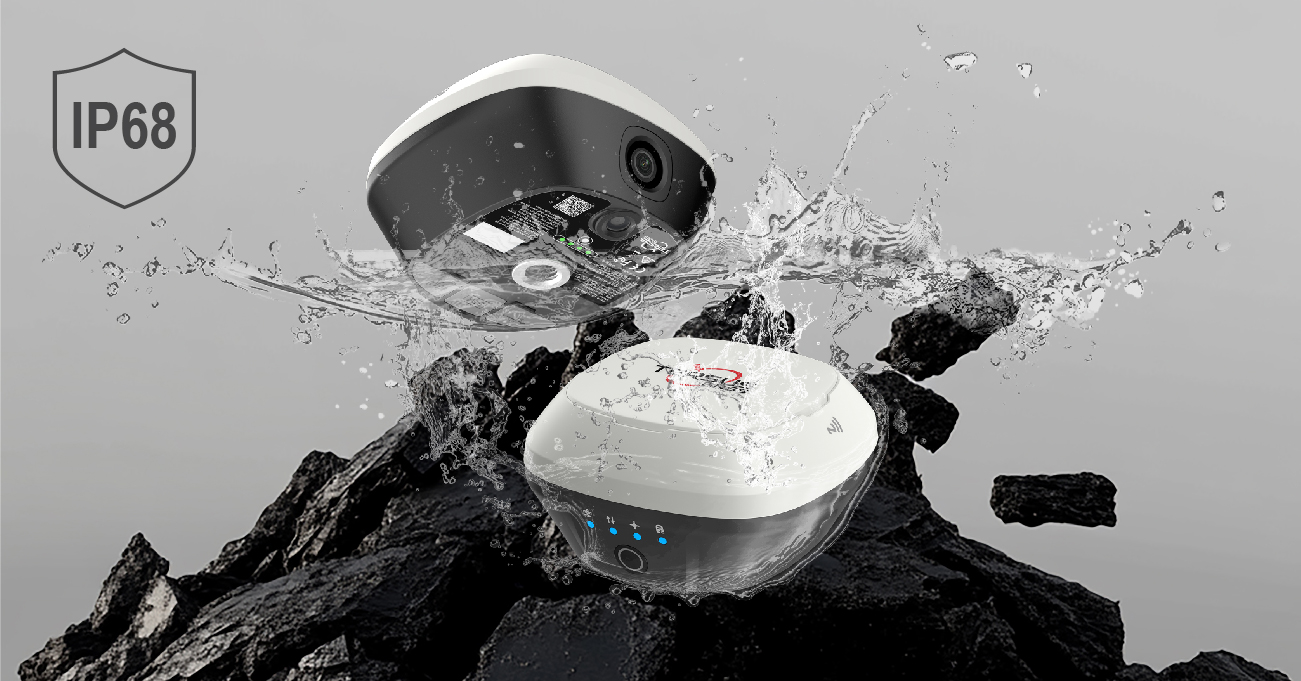

With an IP68-rated design, the rugged housing protects the equipment in challenging environments. Featuring a futuristic design and color scheme, both TS21 and TS20 remain lightweight at just 0.85kg.

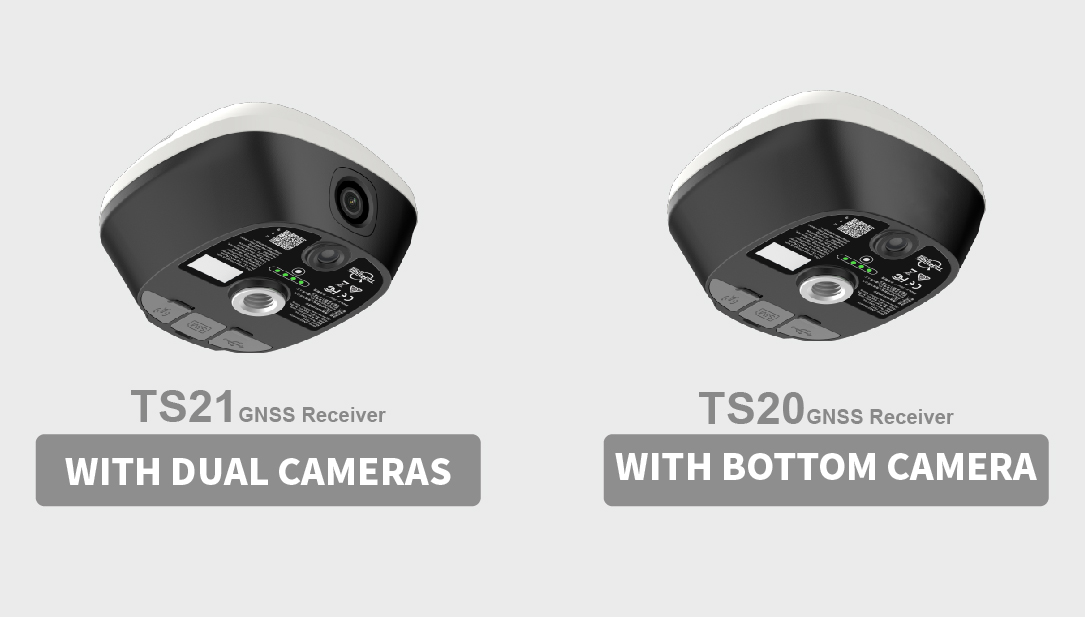

TS21 and TS20 are smart antennas with identical form factors. TS21 features a front and bottom camera — the front camera enables visual positioning, while both cameras work together for AR stakeout, making it suitable for diverse scenarios. TS20 has a single bottom camera dedicated to AR stakeout, designed specifically for stakeout tasks.
-
Brochure_TS21&TS20_EN
Release Date: 2025-12-17 Version:1.1
-
Datasheet_TS20_EN
Release Date: 2025-12-11 Version:2.0
-
Datasheet_TS21_EN
Release Date: 2025-12-11 Version:2.1
-
Quick Start_TS20
Release Date: 2025-04-27 Version:1.1
-
Quick Start_TS21
Release Date: 2025-12-04 Version:1.1
-
Firmware Upgrade Guide_TS20&TS21_EN
Release Date: 2025-12-17 Version:1.0
-
User Manual_TS20_EN
Release Date: 2025-06-16 Version:1.0
-
User Manual_TS21_EN
Release Date: 2025-11-05 Version:1.0
-
C02-C7 EMC RSHA250514001
Release Date: 2026-01-05 Version:
-
C03-C8 RED RSHA250514001
Release Date: 2026-01-05 Version:
