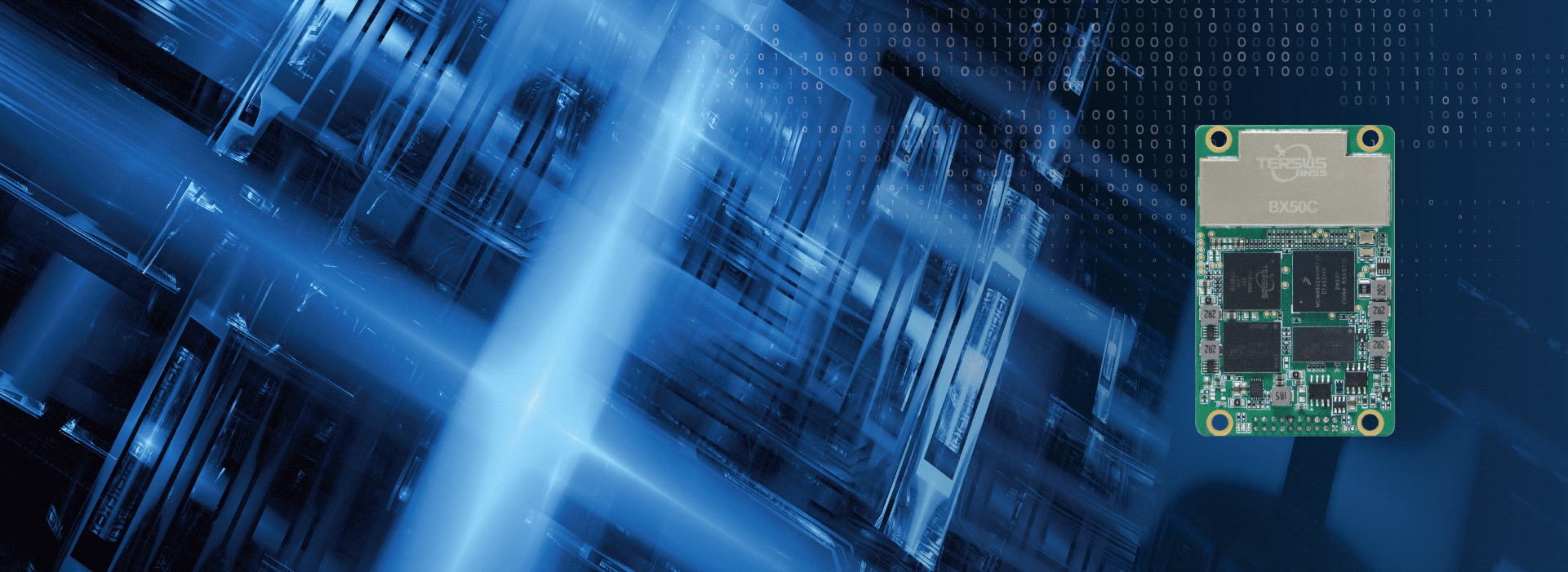

BX50 GNSS OEM Board
Proprietary Antares chip
Advanced anti-interference algorithms
Centimeter positioning
Advanced anti-interference algorithms
Centimeter positioning
Proprietary Antares chip

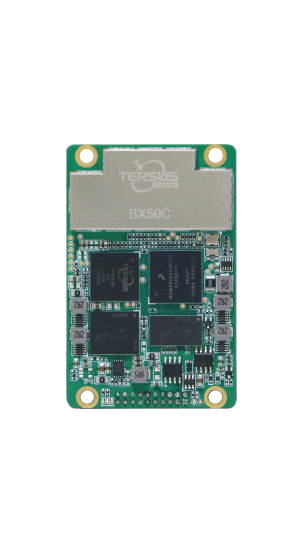

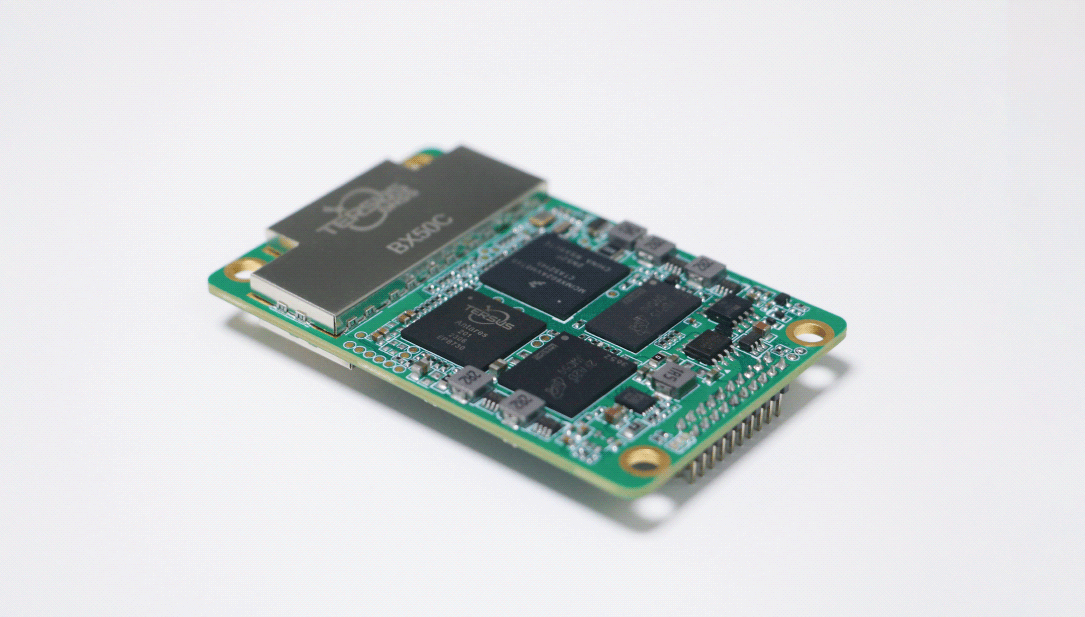

The Tersus BX50C uses a completely independently designed and developed Antares chip and a mature 55nm process with excellent power management.
Advanced algorithms
Using the advanced anti-interference algorithms, interfering signals can be monitored in real time and automatically filtered out.
All current GNSS constellations
BX50C tracks all current GNSS constellations including GPS, GLONASS, Galileo, Beidou, QZSS, SBAS, and IRNSS.
Centimetre positioning accuracy
Equipped with the latest Tersus GNSS ExtremeRTK™ technology, BX50C provides centimetre-level positioning accuracy, improving the continuity and reliability of RTK solutions even in challenging environments.
Features
Documents
Supports multiple constellations and frequencies
-GPS L1 C/A, L1C, L2C, L2P, L5C
-GLONASS L1OF, L1OC, L2OF, L2OC, L3OC
-BeiDou B1I, B2I, B3I, B1C, B2a, B2b
-Galileo E1, E5a, E5b, E5AltBOC, E6
-QZSS L1 C/A, L1C, L2C, L5C
-SBAS L1 C/A, L5
-IRNSS L5
Supports 1792 channels
Centimeter-level position accuracy
Flexible interfaces such as COM, USB, CAN
Supports PPS output and event mark input
Low power consumption
Supports up to 20Hz RTK solution updates and raw data output
-
Datasheet_BX50C
Release Date: 2024-01-08 Version:1.1
-
Datasheet_BX50M-TAP
Release Date: 2024-06-07 Version:1.2
-
Datasheet_BX50L-TAP
Release Date: 2024-06-07 Version:1.2
-
Datasheet_BL40C_PPP
Release Date: 2024-06-07 Version:1.2
-
Brochure_GNSS Boards & Module
Release Date: 2024-07-05 Version:3.3
-
User Manual_Logs and Commands Reference_Tersus BX50C
Release Date: 2024-06-14 Version:2.2
-
User Manual_BX50L-TAP
Release Date: 2024-06-07 Version:1.2
-
User Manual_BX50M-TAP
Release Date: 2024-06-07 Version:1.2
