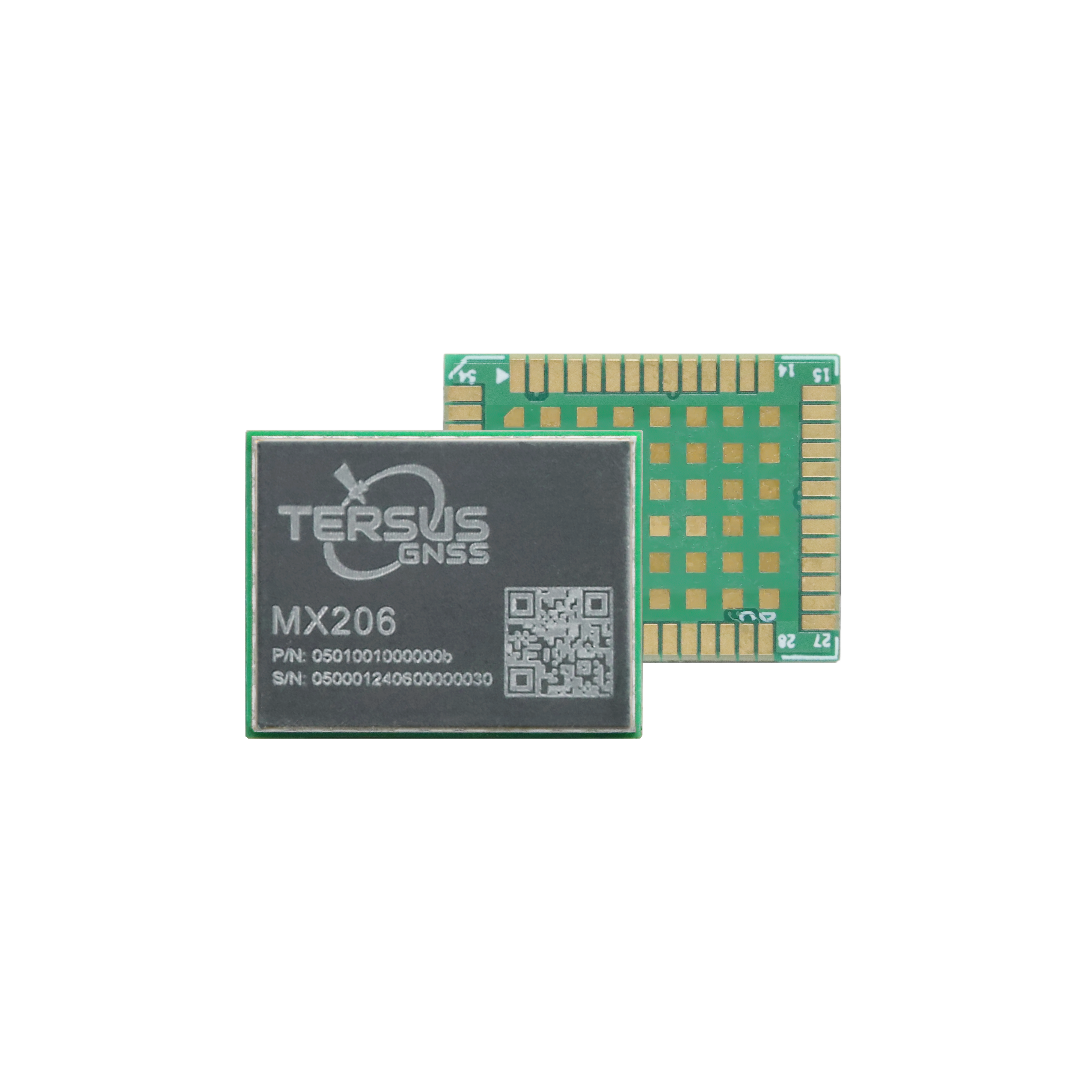

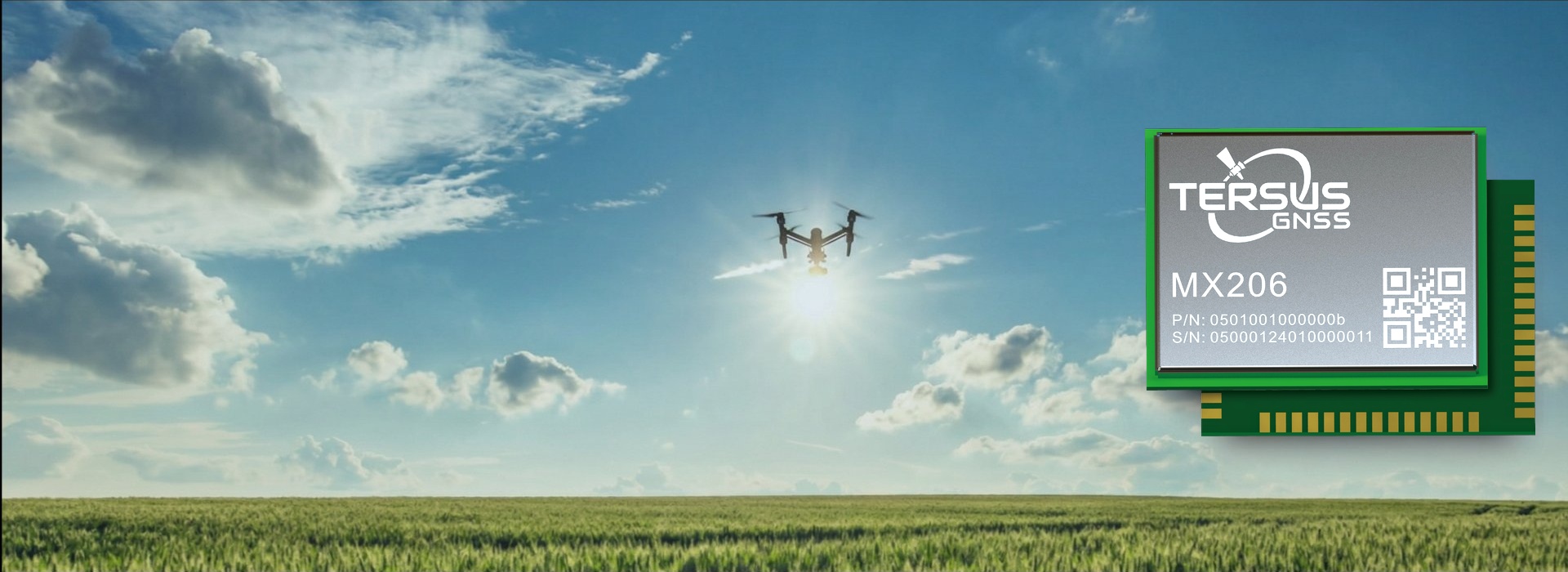

MX206 Module
MX206 multi-frequency GNSS module with TAP service
Key Features

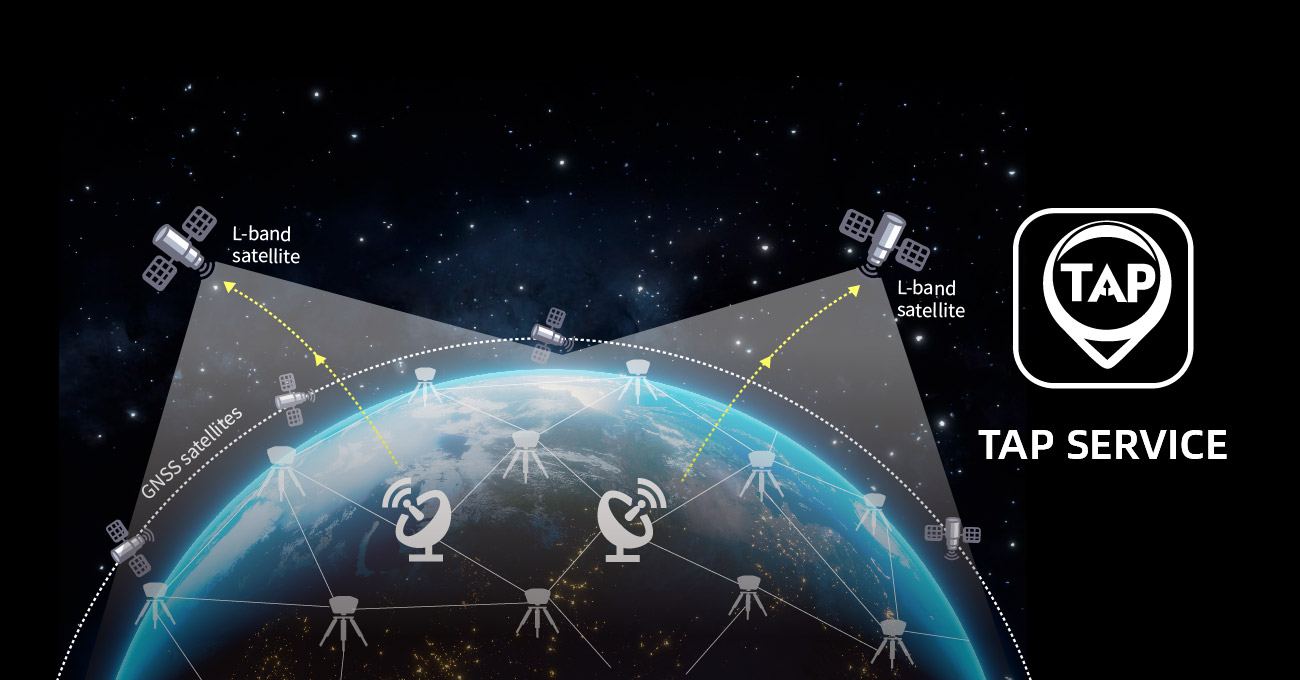

TAP Service

Directly receives corrections from satellites, ensuring 2.5cm accuracy with no need for local RTK base stations or CORS.

Tersus ExtremeRTK™ GNSS technology

Tersus self-developed technology delivers centimeter-level RTK positioning accuracy even in challenging environments.

Anti-interference

Self-developed advanced algorithms provide real-time interference visualization and mitigation.

Easy to integrate

Ultra-compact 17×22×2.4 mm LGA-54 package. Industry-standard pinout with rich interfaces: 3×UART, 2×CAN, SPI Master/Slave, I²C, 2×PPS, and Event Mark.

Multi-frequency, multi-constellation

Tracks all current GNSS constellations and almost all frequencies. Provides flexible positioning options.

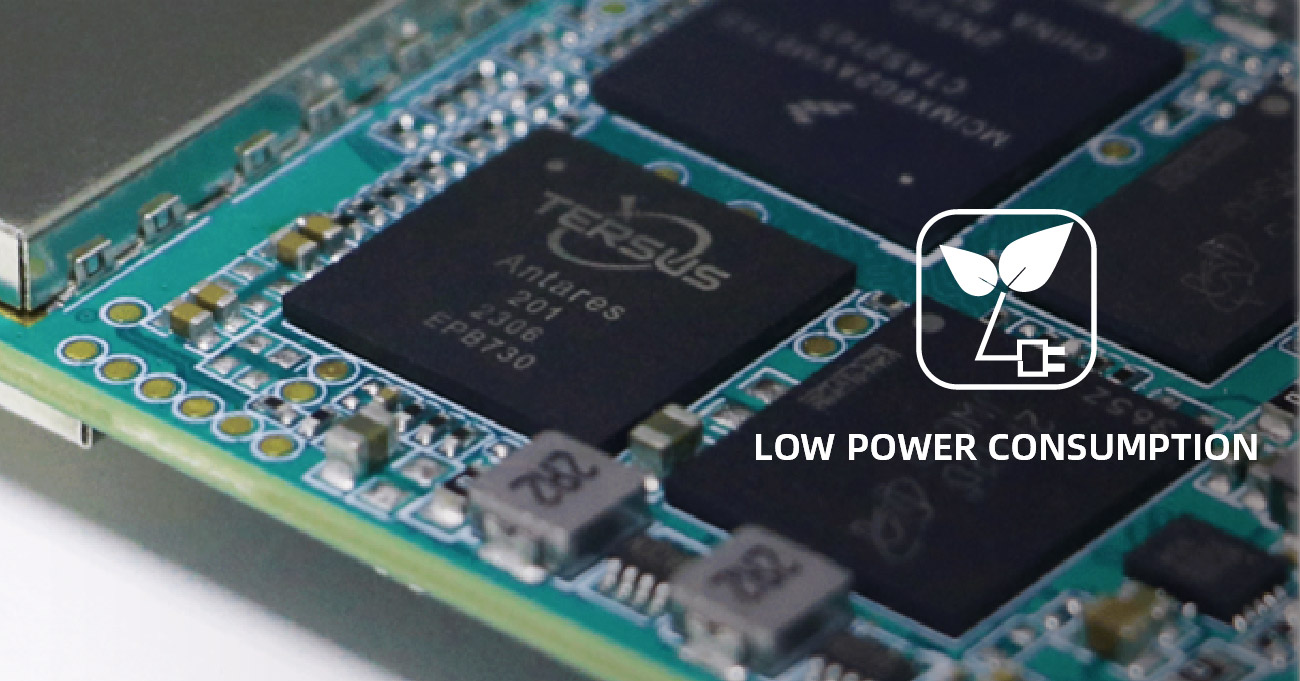

Low Power Consumption

Standard power consumption is down to 350mW, ideal for integrated applications with a high demand for low power consumption.

Applications
UAV & Aerial Survey Precision Agriculture Geospatial Surveying Autonomous Vehicles & Robotics Smart Monitoring & IoT

Power drone-based surveying, mapping, and inspection with real-time centimeter positioning for accurate 3D reconstruction and LiDAR georeferencing.

Enable autonomous tractors, precision spraying, and variable-rate application with centimeter-level guidance across vast farmlands. TAP PPP eliminates the need for base station infrastructure — simply power on and go.

Professional land surveying and construction layout with RTK-level precision. Fast PPP convergence time in <3 min for maximum field productivity.

Deliver precise positioning data for drones, UGVs, autonomous robots, and self-driving platforms. High dynamics support up to 550m/s velocity and 4g acceleration.

Accurate timing (10ns RMS) and continuous positioning for logistics tracking, fleet management, environmental monitoring, and infrastructure surveillance terminals.

Features
Documents
Integrated TAP PPP service — centimeter-level global positioning without base stations or cellular networks
Intelligent PPP/RTK dual-mode with seamless automatic switching and zero-downtime failover
Professional-grade narrow-band anti-interference engine for reliable operation in complex RF environments
Ultra-compact 17×22×2.4 mm LGA-54 package with drop-in replacement design
All-constellation, multi-frequency GNSS support (GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC, SBAS)
20 Hz high-speed RTK update rate for dynamic applications
Ultra-low 350mW power consumption for embedded and battery-powered devices
Rich interfaces: 3×UART, 2×CAN, SPI, I²C, 2×PPS, Event Mark
Fast cold start (<30 s) and hot start (<2 s) performance
Industrial grade: –40°C to +85°C operating temperature
