AX4E06M
Mini Choke Ring Antenna
AX4E06M

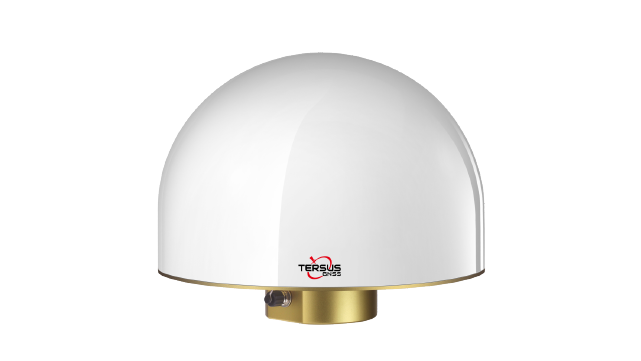

The AX4E06M is a ruggedized and durable mini choke ring antenna for base station that covers full frequency satellite signal tracking of GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBAS as well as L-Band correction service. It is a high performance GNSS antenna with strong multipath suppression performance that specifically designed for applications as land and marine surveying, channel surveying, earthquake and landslide monitoring, deformation monitoring, and wharf container operations that require absolute positioning accuracy and multi-constellation support.

The AX4E06M adopts unique choke ring structure design which delivers extraordinary multipath suppression performance for stable satellite signal tracking. The stability of this antenna reaches submillimeter, ideal for mission-critical applications. The low noise amplifier (LNA) provides the stability and reliability of GNSS signals for superior measurement quality with excellent out of band rejection.

Features
Documents
Supports GPS L1/L2/L5, GLONASS L1/L2/L3, BeiDou B1/B2/B3, Galileo E1/E5a/E5b/E6, QZSS L1/L2/L5/L6, IRNSS L5, SBAS L1/L5, L-Band
High gain with extraordinary low elevation signal tracking
High phase center stability ensures sub-millimeter level positioning accuracy
Strong anti-interference for challenging environment operations
Ruggedized structure, mini design, lightweight, IP67 water/dust resistance
