BX40C

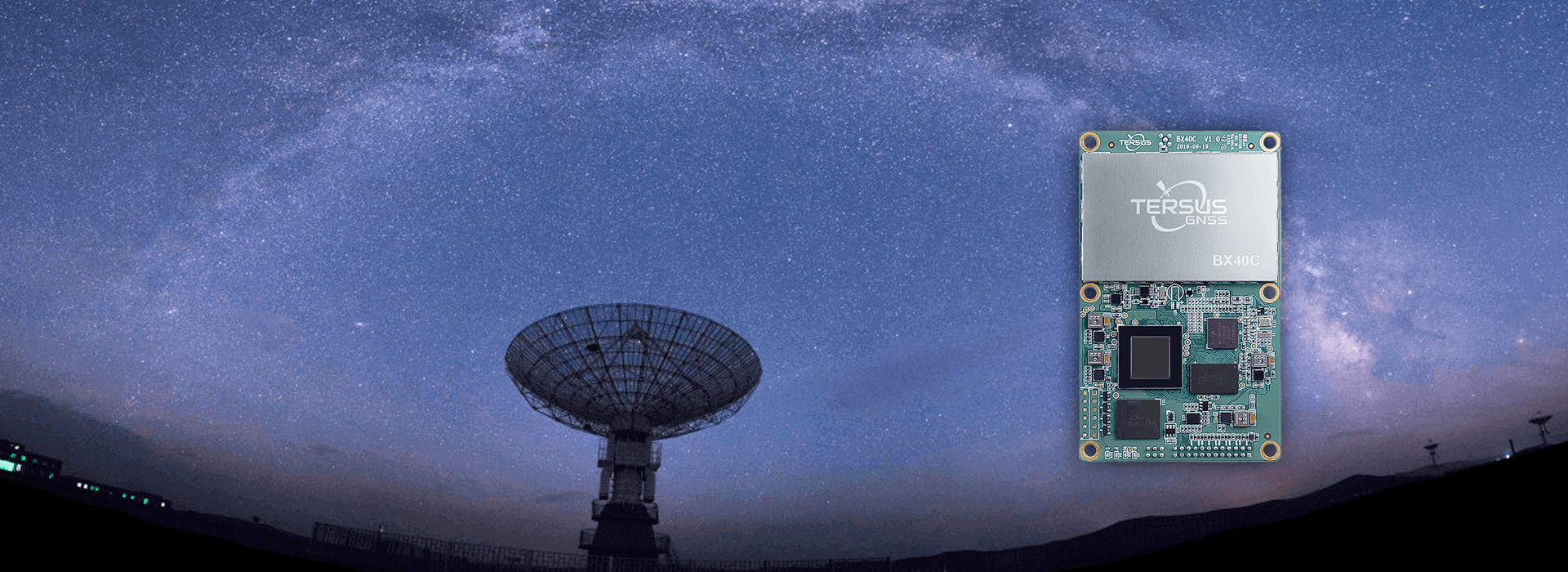

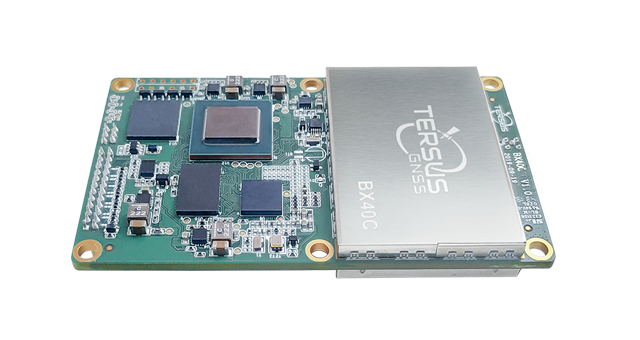

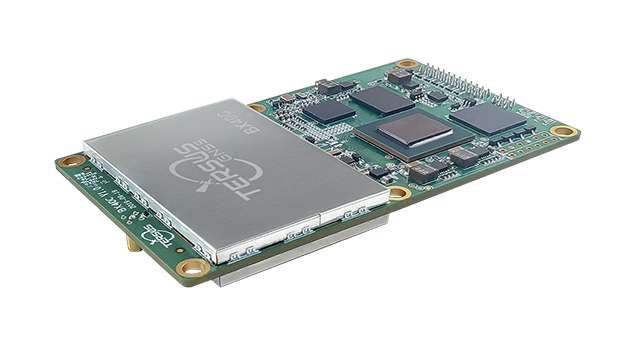

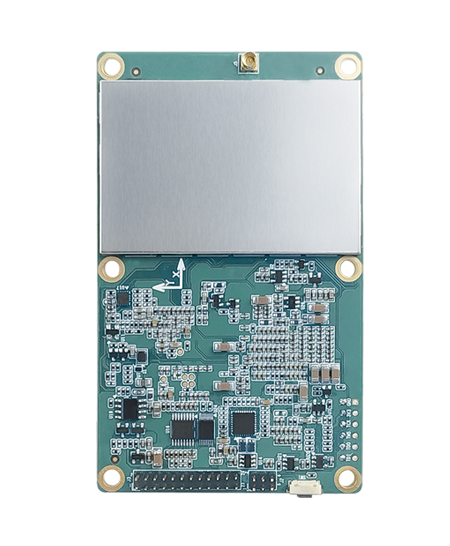

The Tersus BX40C is a compact GNSS RTK board with full constellation tracking for providing cm-level accuracy positioning.
The Tersus BX40C is a compact GNSS RTK board with full constellation tracking for providing cm-level accuracy positioning. It can be integrated with autopilots and inertial navigation units.
The BX40C board supports multiple constellations and multiple frequencies to improve the continuity and reliability of the RTK solution even in harsh environments. In-built 4GB memory makes data collection easy. It features compatibility with other GNSS boards in the market via flexible interfaces, smart hardware design, and commonly used log/command formats.


Features
Specifications
Documents
Videos
Powered by new Tersus ExtremeRTK™ GNSS Technology, BX40C supports multi-constellation and multi-frequency all-in-view satellite tracking
Satellite tracking:
- GPS L1 C/A, L2C, L2P, L5     - GLONASS L1 C/A, L2 C/A
- BeiDou B1I, B2I, B2a, B3I     - Galileo E1, E5a, E5b
- QZSS L1 C/A, L2C, L5     - SBAS (EGNOS, WAAS, MSAS, GAGAN) L1 C/A
Supports 576 channels
Centimeter-level position accuracy
Flexible interfaces such as RS232, USB, CAN or Ethernet
Supports PPS output and event mark input
Performance
+
Signal Tracking
GPS L1 C/A, L2C, L2P, L5; GLONASS L1 C/A, L2 C/A;
BeiDou B1I, B2I, B2a, B3I; Galileo E1, E5a, E5b;
QZSS L1 C/A, L2C, L5;
SBAS (EGNOS, WAAS, MSAS, GAGAN) L1C/A
GNSS Channels
576
Single Point Positioning Accuracy (RMS)
     - Horizontal
1.5m
     - Vertical
3.0m
RTK Positioning Accuracy (RMS)
     - Horizontal
10mm+1ppm
     - Vertical
15mm+1ppm
Observation Accuracy (zenith direction)
     - C/A Code
10cm
     - P Code
10cm
     - Carrier Phase
1mm
Time To First Fix (TTFF)
     - Cold Start
<50s
     - Warm Start
<30s
Reacquisition
<2s
Timing Accuracy (RMS)
20ns
Velocity Accuracy (RMS)
0.03m/s
Initialization (typical)
<10s
Initialization Reliability
>99.9%
Correction
RTCM 2.x/3.x/CMR/CMR+
Data Output
NMEA-0183 and Tersus Binary Format
Max. Update Rate
20Hz
Storage
In-built 8GB memory
Physical & Electrical
+
Input voltage
3.3V DC
Power Consumption (typical)
3.6W
Dimension
100x60x16mm
Weight
44g
IO Connectors
24pin header + 6pin header
Antenna Connector
MMCX female x1
Environmental
+
Operating Temperature
-40℃ ~ +75℃
Storage Temperature
-55℃ ~ +85℃
Communication
+
Serial ports
RS-232 x1, TTL x2
COM Baud rate
Up to 921600bps
USB ports
USB 2.0 device x1
CAN ports
ISO/DIS 11898 x1*
* This port’s function is related to firmware version.
PPS ports
LVTTL x1
Event Mark
LVTTL x2
Ethernet
10BaseT/100BaseT x1
