BX306
GNSS Real-time Kinematic RTK Board
BX306 left top.png
BX306 is a cost-efficient GNSS RTK board, which provides cm-level positioning in real time, and accurate raw observation for static post processing and post processing kinematic (PPK).
BX306 left top_640x340.png
The BX306 board supports three constellations (GPS L1/L2, GLONASS L1/L2, and BeiDou B1/B2) to improve the continuity and reliability of the RTK solution even in harsh environments. In-built 4GB memory supports data collection. It features compatibility with other GNSS boards in the market via flexible interfaces, smart hardware design, and commonly used log/command formats.
Features
Specifications
Documents
Videos
Supports GPS L1/L2, GLONASS L1/L2, and BeiDou B1/B2
Supports in-built 4GB memory, which makes data collection easy
Up to 20Hz RTK solution and raw data output
Supports 384 channels
Pin-to-pin compatible with NovAtel OEM615
Log/command compatible with NovAtel protocol
Supports event mark and PPS
Signal Tracking
+
Single Antenna
GPS L1/L2
GLONASS L1/L2
BeiDou B1/B2
GNSS Channels
384
Positioning
+
Single Point Positioning Accuracy (RMS)
     - Horizontal
1.5m
     - Vertical
3.0m
RTK Positioning Accuracy (RMS)
     - Horizontal
10mm + 1ppm
     - Vertical
15mm + 1ppm
PPK Positioning Accuracy (RMS)
     - Horizontal
10mm+1ppm
     - Vertical
15mm+1ppm
Observation
+
C/A Code (zenith direction)
10cm
P Code (zenith direction)
10cm
Carrier Phase (zenith direction)
1mm
Performance
+
Time to First Fix
     - Cold Start
<50s
     - Warm Start
<30s
Timing Accuracy (RMS)
20ns
Velocity Accuracy (RMS)
0.03m/s
Initialization (typical)
<10s
Initialization Reliability
>99.9%
Physical & Electrical
+
Size
71 x 46 x 12 mm (OEM board)

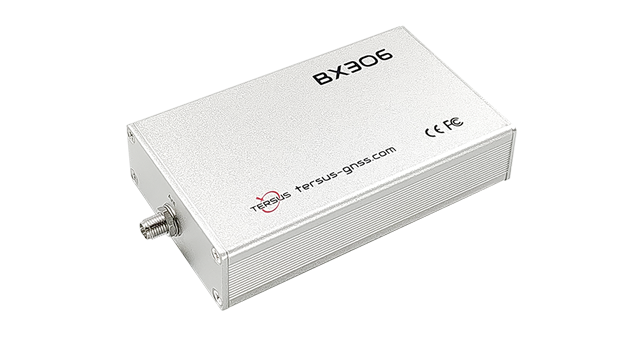

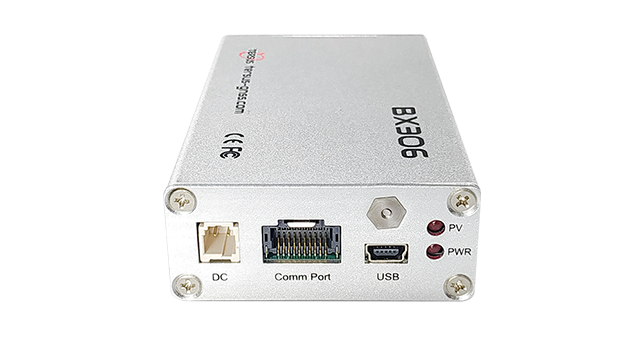

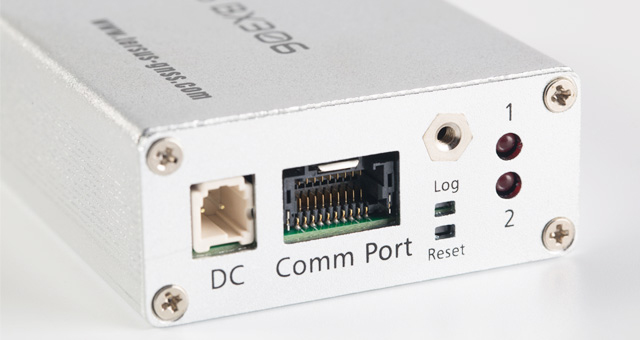

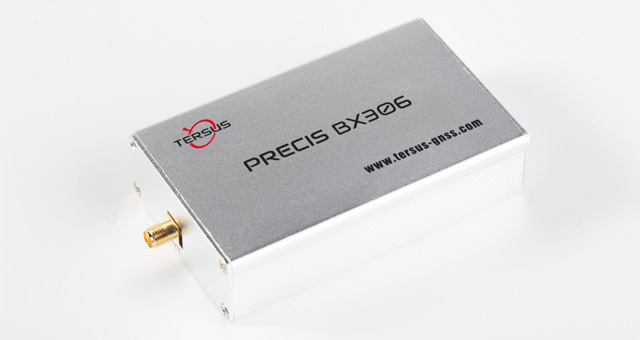

100.2 x 57.4 x 24 mm (Enclosure)
Weight
23g
Input Voltage
3.3V DC (OEM board)
5~28V DC (Enclosure)
Power Consumption (typical)
2.8W
Active Antenna Input Impedance
50Ω
Antenna Connector
MCX female 1x
COM Baud Rate
Up to 460800bps
Pin-to-Pin Compatible
NovAtel 615
Operating Temperature
-40℃ ~ +85℃
Data
+
Correction
RTCM 2.x/3.x/CMR/CMR+
Output
NMEA-0183; Tersus Binary Format
Max. Update Rate
20Hz
Log & Command Compatible
NovAtel Protocol
Storage
In-built 4GB memory
Communication
+
Serial Ports
LVTTL x2
USB Ports
USB device x1
CAN Ports
ISO/DIS 11898 x1 *
PPS Ports
LVTTL x1
Event Mark
LVTTL x1
Remarks:
* This port’s function is related to firmware version.
  • BX306 Datasheet
    Release Date: 2019-10-23 Version:2.6
  • User Manual For BX Series GNSS Receiver
    Release Date: 2019-09-11 Version:2.3
  • Log & Command Reference for Tersus BX GNSS OEM Boards
    Release Date: 2019-12-10 Version:3.0
  • BX306_CE/FCC
    Release Date: 2018-12-26 Version:
  • GNSS OEM Boards & Receivers Brochure
    Release Date: 2019-08-30 Version:2.2
  • Test Report_Tersus RTK Competitive Analysis_201805
    Release Date: 2018-06-08 Version:1.0
  • Test Report_Tersus RTK Competitive Analysis_201804
    Release Date: 2018-04-30 Version:1.0
