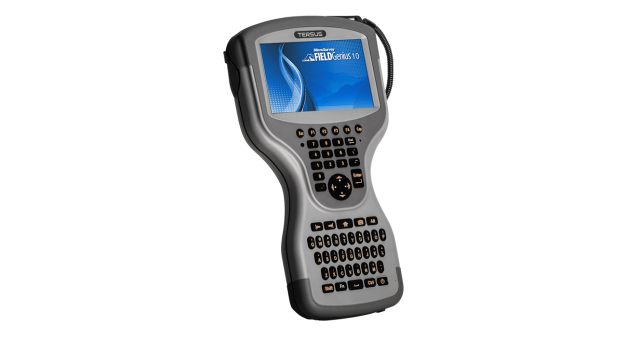

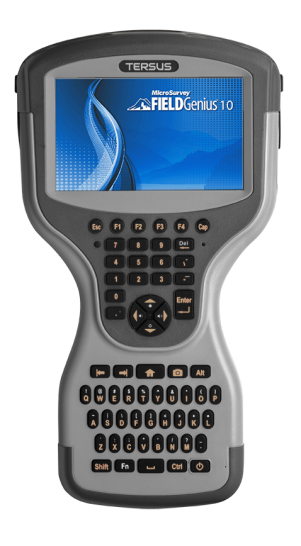

The Tersus TC30 Controller is a rugged controller with the design of 5'' touch screen and full keypad. Flexible interfaces such as Bluetooth, Wi-Fi, 3G/4G and DB9 serial port make it convenient to connect to GNSS receivers and transceive correction data. Equipped with Windows Mobile operating system, it is perfect to adapt with MicroSurvey FieldGenius software and other field application software. With professional IP67-rated protection, it is robust and reliable for harsh operating environment.
Features
Specifications
Documents
Videos
Windows Mobile operating system
1GHz CPU
512MB RAM + 1GB ROM
Keypad with 62 numeric + programmable keys
5 megapixel camera
Supports optional embedded GNSS module
System
+
Operating System
Windows Mobile
CPU
1GHz
Memory
512MB RAM + 1GB ROM
Keypad
62 numeric + programmable keys
Display
5’’ sunlight readable touch screen
Resolution
800x480
Camera
5 megapixel
Storage extension
TF card
Physical
+
Dimension
283mmx158mmx50mm
Weight
1.15kg (include battery)
Electrical
+
Power
5V DC, 2.0A
Li-ion Battery
6500 mAh, 3.7V
Working time
>8 hours
Environmental
+
Operating Temperature
-30 ℃ ~ +60 ℃
Storage Temperature
-30 ℃ ~ +80 ℃
Dustproof & Waterproof
IP67
Shock
1.2m drop protection
GNSS Performance (Optional)
+
Signals tracking
GPS L1+BeiDou L1 / GPS L1+GLONASS L1
GNSS channels
72
Data format
NMEA-0183
Raw data
Alternative
Single Point Positioning Accuracy
2.5m
SBAS Differential Positioning Accuracy
2m
Communication
+
Wi-Fi
Supported
Cellular
3G/4G
Bluetooth
V2.1
Long range Bluetooth
SMA female x1
USB port
USB Type B x1, USB Type A x1
Serial port
DB9 male x1
GNSS port
Coaxial connector x1
Software Support
+
SurvCE, FieldGenius, SuperGeo
-
Datasheet_TC30 Controller
Release Date: 2019-12-27 Version:1.1
-
User Manual_TC30
Release Date: 2020-03-27 Version:1.0
-
CE EMC_TC30
Release Date: 2020-05-18 Version:1.0
-
CE RED_TC30
Release Date: 2020-05-14 Version:1.0
-
FCC_SDoc_TC30
Release Date: 2020-04-21 Version:1.0
-
IC_TC30
Release Date: 2020-04-21 Version:1.0
-
ROHS
Release Date: 2021-11-24 Version:1.0
