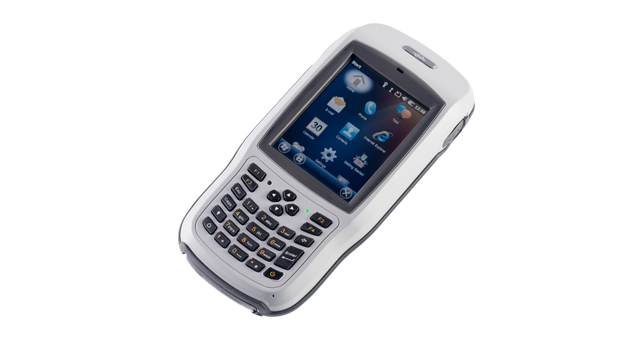

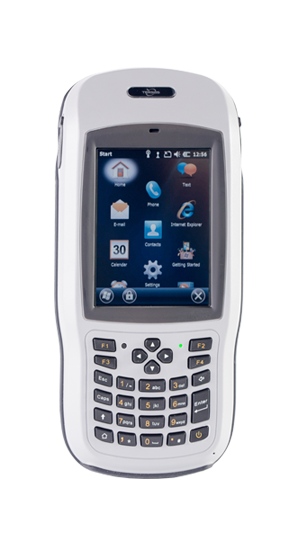

The T18M is a GNSS controller equipped with an alphanumerical keypad, a 3.7" sunlight readable screen and a powerful processor, which is designed to improve surveyors' productivity.
With a rugged IP54-rated enclosure that can survive 1.2 meter free drops, the T18M is a perfect solution for the harshest operating environments. In addition, the Li-ion, 6500mAh-capacity battery can support prolonged fieldwork.
With a rugged IP54-rated enclosure that can survive 1.2 meter free drops, the T18M is a perfect solution for the harshest operating environments. In addition, the Li-ion, 6500mAh-capacity battery can support prolonged fieldwork.
Features
Specifications
Documents
Videos
Rugged design makes it suitable for the harshest of operating conditions
The screen is readable even under strong sunlight
Supports standard communication interfaces, including Bluetooth, Wi-Fi, and 3G
An in-built 5.0M pixel camera with autofocus makes it convenient for taking photos in the field
The portable, high-capacity battery can support operating times of greater than 20 hours
FieldGenius and SurveCE software tools make the operation easy
System
+
Operating System
Windows Mobile 6.x
CPU
806MHz
Memory
4GB ROM + 512MB RAM
Flash
16GB
External flash
TF card, up to 32G
Keypad
27 Alphanumerical keypad
LCD
3.7" high light LCD, 640*480
Touch Screen
Capacitive touch screen
Camera
5.0M pixel camera with autofocus
Flash Light
High light flash LED
GNSS
+
GNSS
GPS, GLONASS, BDS and SBAS supported
Accuracy
2.5m (Standalone), 1.5m (DGPS), 2m (SBAS)
Time to First Fix
27s
Physical
+
Dust proof and waterproof
IP54
Shock
1.2m drop onto concrete
Dimension
200mm*96mm*32mm
Weight
515g (with battery)
Operating temperature
-20℃ to +60 ℃
Storage temperature
-30℃ to +70 ℃
Electrical
+
Power
5VDC, 1A
Li-ion battery
6500mAh, 3.7V
Battery life
20h
Charging time
4 hours (typical)
Communication
+
Wi-Fi
802.11 b/g/n
Cellular Modem
GSM /WCDMA
Bluetooth
V2.1 supported (V4.0 optional)
NFC
Optional
Serial Port
RS-232 x1
-
T18M Controller Datasheet
Release Date: 2020-08-26 Version:1.1
