MatrixRTK Receiver Kit
With choke ring antenna, an ideal solution for Continuously Operating Reference Station (CORS)
MatrixRTK - MatrixRTK GNSS Receiver Kit (1) 640x340px.png

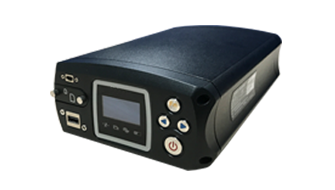

The MatrixRTK is a GNSS RTK receiver. It includes a high-performance, multi-constellation and multi-frequency GNSS board, which can provide high accuracy and stable signal detection.
MatrixRTK - MatrixRTK GNSS Receiver Kit (2) 640x340px.png

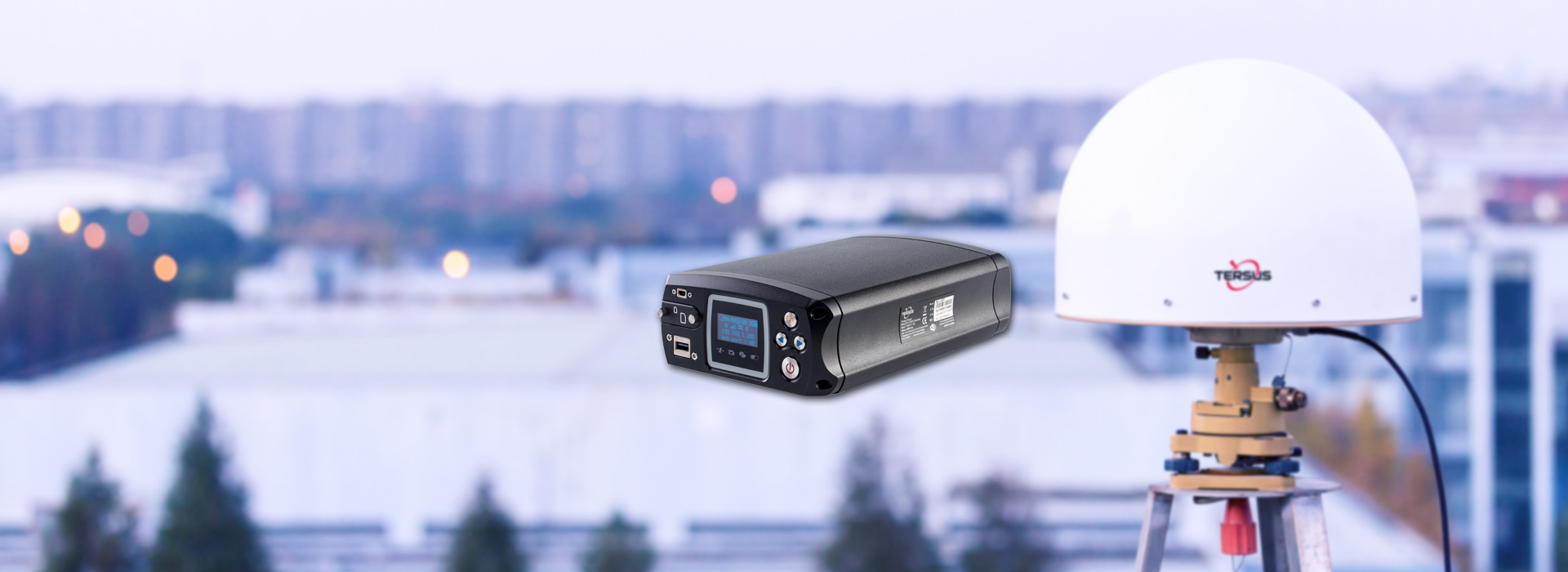

Working with the choke ring antenna, the MatrixRTK can improve anti-jamming performance and output high-quality RTK corrections, which is an ideal solution for Continuously Operating Reference Station (CORS). The built-in, high-capacity battery can support up to 24 hours of field work. The rugged housing protects the equipment from harsh environments. The system can be operated remotely.
Features
Specifications
In the Box
Documents
Videos
Supports multiple constellations and multiple frequencies
- GPS: L1C/A, L1C, L2C, L2E, L5
- GLONASS: L1C/A, L1P, L2C/A, L2P
- BeiDou: B1, B2
- GALILEO: E1 BOC, E5A, E5B, E5AltBOC
- SBAS: L1C/A, L5
Supports 64GB internal storage and up to 1TB via an external SD card
Rapid RTK integer ambiguity resolution
Supports stable, high-precision measurement output
Supports 3G, WiFi, and external radio
Supports remote access and operation
System
+
Operation System
Linux
Data Storage
64GB internal storage
Up to 1TB external SD card
Signal Tracking
+
GNSS
GPS: L1C/A, L1C, L2C, L2E, L5
GLONASS: L1C/A, L1P, L2C/A, L2P
BeiDou: B1, B2
GALILEO: E1 BOC, E5A, E5B, E5AltBOC
SBAS: L1C/A, L5
Performance
+
High-Precision Static (RMS)
   - Horizontal
3mm + 0.1ppm
   - Vertical
3.5mm + 0.4ppm
Static and Fast Static (RMS)
   - Horizontal
3mm + 0.5ppm
   - Vertical
5mm + 0.5 ppm
RTK (RMS)
   - Horizontal
8mm + 1ppm
   - Vertical
15mm + 1ppm
PPK (RMS)
   - Horizontal
8mm + 1ppm
   - Vertical
15mm + 1ppm
Network RTK (RMS)
   - Horizontal
8mm + 0.5ppm
   - Vertical
15mm + 0.5ppm
Carrier Phase Measurements Precision
<1mm
SBAS Positioning Accuracy
0.5m
Initialization (typical)
<10s
Initialization Reliability
>99.9%
RTK Format
CMR, CMR+, sCMRx, RTCM2.X/3.X
Electrical
+
Battery
12500mAh/7.4V x1
Supports up to 24 hours working
Input Voltage
7V~36V DC
Power Consumption (typical)
<5W
Communication
+
3G
TD-LTE, FDD-LTE, TD-SCDMA, WCDMA, GPRS, GSM
WiFi
802.11b/g
USB
USB 2.0 x2
Serial Port
RS232 x3, RS485/RS422 x1
Ethernet
10/100M BASE-T x1
External Radio Station (Optional)
   - Power
5W/10W/20W/30W
   - Frequency
450MHz-470MHz
   - Distance (typical)
15km
Physical
+
Size
147.6 x 64.3 x 246.0mm
Weight
2.5kg including battery
Material
Magnesium alloy
Dust- & Waterproof
IP67
Free Drop onto Concrete
1m
Operating Temperature
-40℃ ~ +75℃
Storage Temperature
-40℃ ~ +80℃
Relative Humidity
100% not condensed

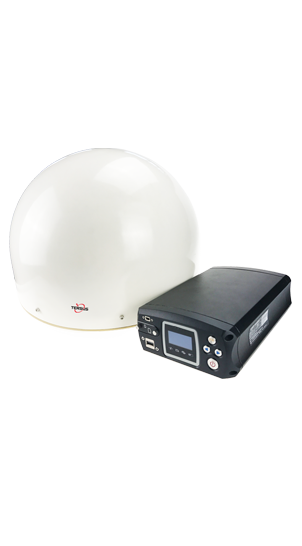

MatrixRTK Receiver Kit includes
1 x MatrixRTK GNSS receiver
1 x 3D GNSS antenna
1 x GNSS antenna cable
1 x Power adopter
1 x AC power cable
1 x Normal cable
  • MatrixRTK Receiver Kit Datasheet
    Release Date: 2018-04-16 Version:2.0
  • MatrixRTK User Manual
    Release Date: 2018-04-20 Version:1.0
