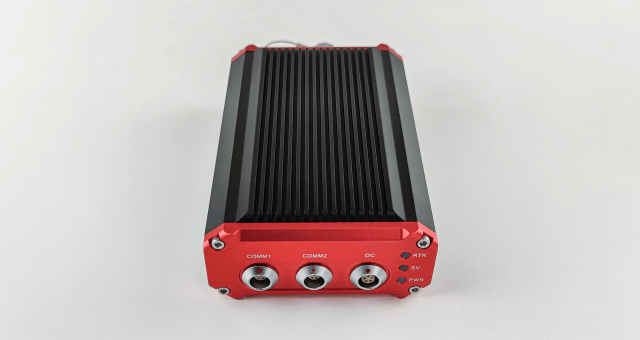

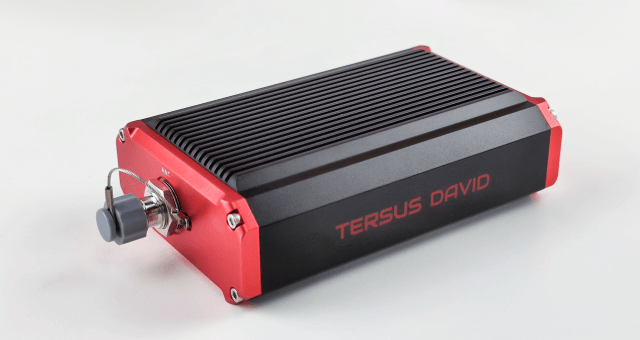

The Tersus David30 is a multi-constellation high precision GNSS receiver which offers centimeter-accurate positioning. It is designed for intelligent transportation, construction, machine control, precision agriculture, and navigation applications.
The David30 GNSS receiver is built for outdoor environments with IP67-rated enclosure. The compact palm size makes it easy to integrate with various application systems.
Features
Specifications
Documents
Videos
Supports multi-constellation including BeiDou, GPS, GLONASS, Galileo, and QZSS
Supports 576 channels
Supports RTCM2.x/3.x, CMR/CMR+ corrections
Flexible for integration in different applications
Data update rate up to 20Hz
Input power range is 5~28V DC
---Note: Input of 28~36V DC can be customized.
IP67-rated dust- & waterproof enclosure, for
reliability in harsh environmental conditions
Supports Nuwa surveying software
In-built 8GB storage benefits data collection
Performance
+
Signal Tracking
GPS L1 C/A, L2C, L2P, L5; GLONASS L1 C/A, L2 C/A;
BeiDou B1I, B2I, B2a, B3I; Galileo E1, E5a, E5b;
QZSS L1 C/A, L2C, L5
BeiDou B1I, B2I, B2a, B3I; Galileo E1, E5a, E5b;
QZSS L1 C/A, L2C, L5
GNSS Channels
576
Single Point Positioning Accuracy (RMS)
Horizontal
1.5m
Vertical
3.0m
Real Time Kinematic/RTK (RMS)
Horizontal
8mm+1ppm
Vertical
15mm+1ppm
DGPS (RMS)
Horizontal
0.4m
Vertical
0.8m
High-Precision Static (RMS)
Horizontal
3mm+0.1ppm
Vertical
3.5mm+0.4ppm
Observation Accuracy (zenith direction)
C/A Code
10cm
P Code
10cm
Carrier Phase
1mm
Time To First Fix (TTFF)
Cold Start
<50s
Warm Start
<30s
Reacquisition
<2s
Timing Accuracy (RMS)
20ns
Velocity Accuracy (RMS)
0.03m/s
Initialization (typical)
<10s
Initialization Reliability
>99.99%
Correction
RTCM 2.x/3.x, CMR/CMR+
Data format
NMEA-0183 and Tersus Binary format
Max. Data Update Rate
20Hz
Storage
In-built 8GB
Physical
+
Physical Dimension
124x79.5x37mm
Weight
≈ 360g
Electrical
+
Input Voltage
5V~28V DC
---Note：Input of 28~36V DC can be customized.
---Note：Input of 28~36V DC can be customized.
Power Consumption (at 25℃ )
6.8W (5V)
Environmental
+
Operating temperature
-40℃ ~ +70℃
Storage temperature
-40℃ ~ +85℃
Humidity
95% non-condensing
Dust- & Waterproof
IP67
Communication
+
Serial Ports
RS232 x2
Serial Baud Rate
Up to 921600bps
USB Ports
USB 2.0 OTG x1
CAN Ports
CAN x1
PPS Ports
LVTTL x1
Event Ports
LVTTL x2
Antenna Connector
TNC female x1
Software Support
+
Tersus Nuwa
Other Third Party Software Support NMEA-0183
-
Datasheet_David30 GNSS Receiver
Release Date: 2021-12-08 Version:1.4
-
Brochure_David30
Release Date: 2021-05-13 Version:1.2
-
Item List_David30_2W Rover
Release Date: 2021-08-27 Version:1.2
-
Item List_David30_2W Base
Release Date: 2021-11-09 Version:1.4
-
Item List_David30_28W Base
Release Date: 2021-11-09 Version:1.4
-
Item List_David30_Base Network
Release Date: 2021-08-27 Version:1.3
-
Item List_David30_Rover Network
Release Date: 2021-08-27 Version:1.2
-
User Manual_Logs and Commands Reference_Tersus BX40C
Release Date: 2021-02-09 Version:1.0
-
User Manual_David30_GNSS Receiver
Release Date: 2021-12-08 Version:2.1
-
User Manual_David_GNSS Receiver
Release Date: 2021-07-21 Version:2.4
-
CE_EMC_David30
Release Date: 2021-01-26 Version:1.0
-
CE_RED_David30
Release Date: 2021-01-26 Version:1.0
-
FCC_SDoc_David30
Release Date: 2021-01-26 Version:1.0
