AX3707

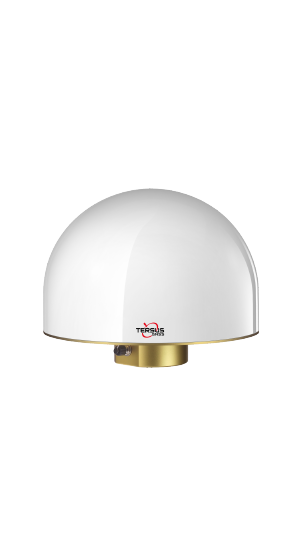

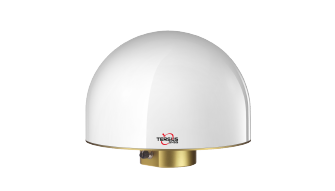

The AX3707 is a 2D choke ring antenna with an integrated radome. It receives GPS L1/L2/L5 and L-band signals, GLONASS L1/L2/L3, BeiDou B1/B2/B3, Galileo E1/E5a/E5b/E6 , QZSS L1/L2/L5/L6, IRNSS L5, SBAS L1/L5, which is ideal in CORS station and geodetic base station applications.
The AX3707 adopts unique wideband antenna technology design which provides superior low elevation satellite tracking, multipath reduction and sub-millimeter phase center stability. The new low noise amplifier (LNA) produces exceptional low measurement noise for superior measurement quality with excellent out of band rejection. The new LNA technology also has high gain which ensures the operation with long cable (100 meters plus).

Features
Documents

Water and dust-proof design ensures absolute seal of kernel part, capable for long time outdoor operation
Sub-millimetre phase centre repeatability, antenna gain has been optimized to allow use with most manufacturers geodetic receivers
LNA has high gain which ensures the operation with long cable (100 metre +)
Supports GPS L1/L2/L5/L-Band, GLONASS L1/L2/L3, BeiDou B1/B2/B3, Galileo E1/E5a/E5b/E6, QZSS L1/L2/L5/L6, IRNSS L5, SBAS L1/L5
Ideal for fixed reference stations and GNSS infrastructure networks
-
Datasheet_AX3707
Release Date: 2022-03-08 Version:1.0
