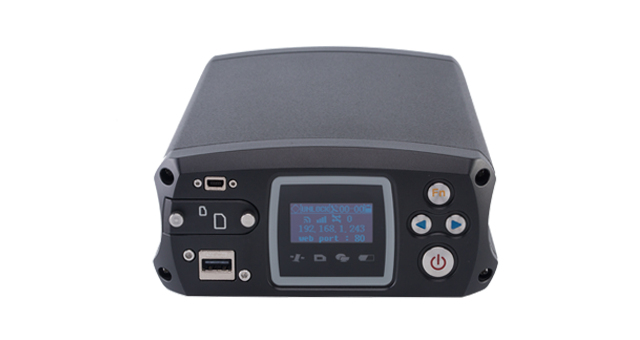

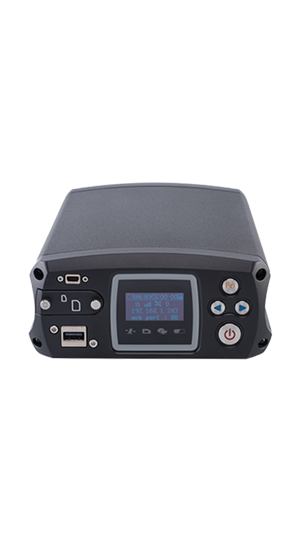

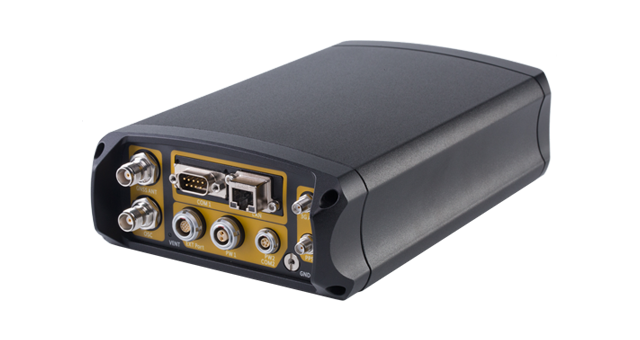

MatrixRTK
The MatrixRTK is a GNSS RTK receiver. It includes a high-performance, multi-constellation and multi-frequency GNSS board, which can provide high accuracy and stable signal detection.
High Performance

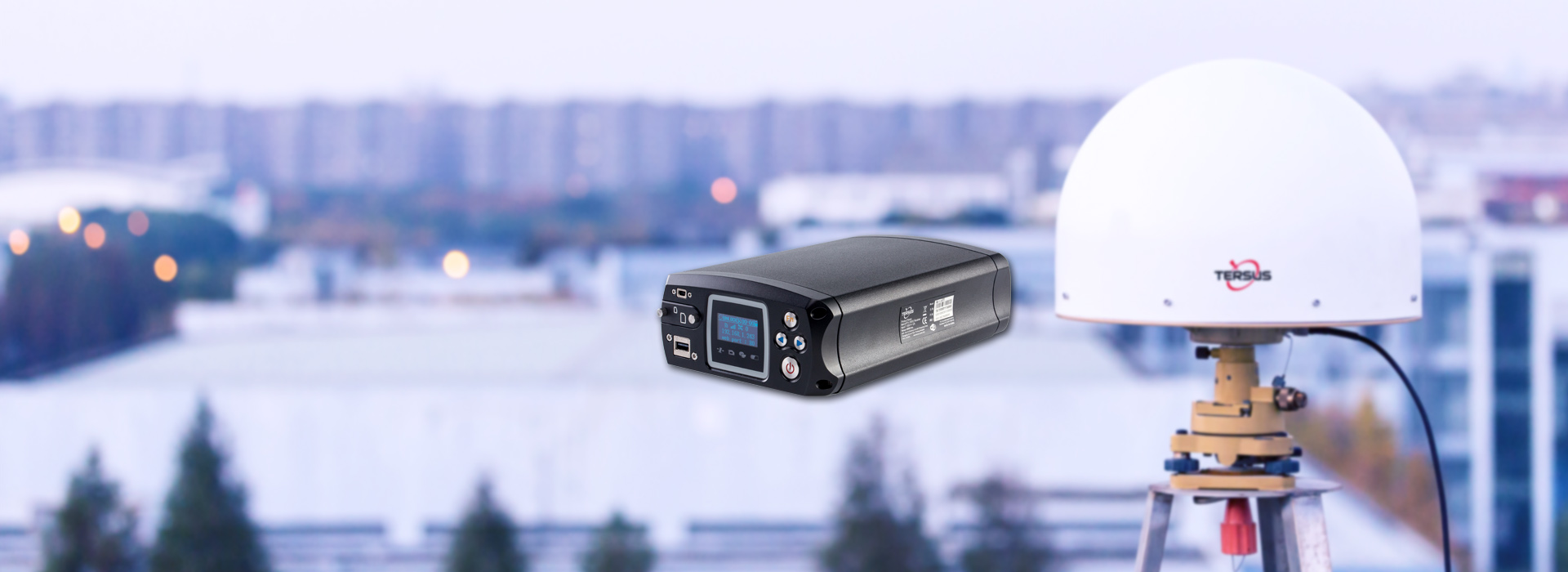

Working with the choke ring antenna, the MatrixRTK can improve anti-jamming performance and output high-quality RTK corrections, which is an ideal solution for Continuously Operating Reference Station (CORS). The built-in, high-capacity battery can support up to 24 hours of field work. The rugged housing protects the equipment from harsh environments. The system can be operated remotely.
Features
Documents
Supports multiple constellations and multiple frequencies
- GPS: L1C/A, L1C, L2C, L2E, L5
- GLONASS: L1C/A, L1P, L2C/A, L2P, L3
- BeiDou: B1/B2/B3
- GALILEO: E1 BOC, E5A, E5B, E5AltBOC, E6
- QZSS: L1, L2, L55
- IRNSS: L5
- SBAS: L1C/A, L5
- GPS: L1C/A, L1C, L2C, L2E, L5
- GLONASS: L1C/A, L1P, L2C/A, L2P, L3
- BeiDou: B1/B2/B3
- GALILEO: E1 BOC, E5A, E5B, E5AltBOC, E6
- QZSS: L1, L2, L55
- IRNSS: L5
- SBAS: L1C/A, L5
Supports 64GB internal storage and up to 1TB via
an external SD card
Rapid RTK integer ambiguity resolution
Supports stable, high-precision measurement output
Supports 3G, WiFi, and external radio
Supports remote access and operation
-
Datasheet_MatrixRTK Receiver
Release Date: 2023-02-23 Version:2.3
-
Datasheet_MatrixRTK Receiver
Release Date: 2018-05-29 Version:1.0
-
User Manual_MatrixRTK
Release Date: 2018-04-20 Version:1.0
