BX316 GNSS Kit
With 2w/460Mhz Radio (RS460)
BX316 Basic 640x340px.png

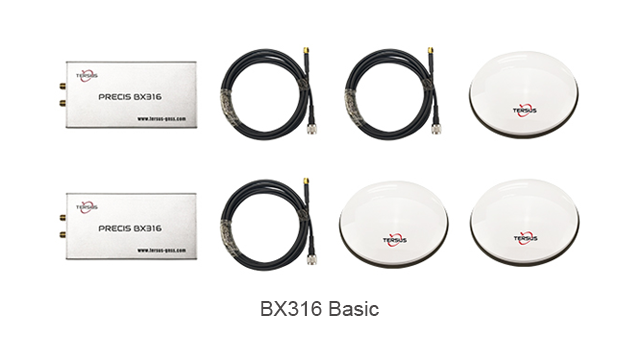

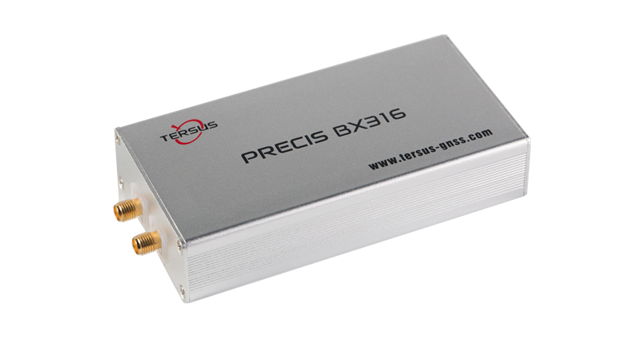

BX316 Kit consists of BX316 Basic and 2W Radio Option. BX316 GNSS receiver is a dual frequency GNSS RTK receiver providing accurate positioning, raw measurement output, and heading information. It offers real-time, cost-efficient, and cm-level positioning as well as flexible interfaces.
2W Radio Option 640x340px.png
2W Radio option provides reliable data communications between 457 MHz and 467 MHz for mission-critical applications where a combination of stability, superior performance and long distance are required. Equipped with dual antenna design for precise heading, the BX316 Kit is ideal for precision navigation, precision agriculture, and surveying.
*For detailed list of items, please check Item List-BX316 Kit
Features
Specifications
In the Box
Documents
Videos
Supports RTK positioning mode or RTK positioning + heading mode
The two modes are software configurable
Supports 384 channels
Command compatible with NovAtel protocol
Supports 20Hz RTK solution updates and raw data outputs
Supports in-built 4GB memory, which makes data collection easy
Supports PPS output and event mark input
Signal Tracking
+
Single Antenna
GPS L1/L2
GLONASS L1/L2
BeiDou B1/B2
Dual Antenna
Primary: GPS L1/L2, GLONASS L1/L2
Secondary: GPS L1, GLONASS L2
or
Primary: GPS L1/L2, BeiDou B1/B2
Secondary: GPS L1, BeiDou B2
GNSS Channels
384
Positioning
+
Single Point Positioning Accuracy (RMS)
     - Horizontal
1.5m
     - Vertical
3.0m
RTK Positioning Accuracy (RMS)
     - Horizontal
10mm + 1ppm
     - Vertical
15mm + 1ppm
Observation
+
C/A Code (zenith direction)
10cm
P Code (zenith direction)
10cm
Carrier Phase (zenith direction)
1mm
Heading 1m Baseline (RMS)
0.15°
Performance
+
Time to First Fix
     - Cold Start
<50s
     - Warm Start
<30s
Timing Accuracy (RMS)
20ns
Velocity Accuracy (RMS)
0.03m/s
Initialization (typical)
<10s
Initialization Reliability
>99.9%
Physical & Electrical
+
Size
108 x 54 x 12mm
Weight
50g
Input Voltage
5V~12V DC
Power Consumption (typical)
3.5W
Active Antenna Input Impedance
50Ω
Antenna Connector
SMA female x2
COM Baud Rate
Up to 921600bps
Operating Temperature
-40℃ ~ +85℃
Data
+
Storage
In-built 4GB memory
Correction
RTCM 2.x/3.x/CMR/CMR+
Output
NMEA-0183; Tersus Binary Format
Max. Update Rate
20Hz
Log & Command Compatible
NovAtel Protocol
Communication
+
Serial Ports
LVTTL x2 or RS232 x2
USB Ports
USB device x1
CAN Ports
ISO/DIS 11898 x2 *
PPS Ports
LVTTL x1
Event Mark
LVTTL x2 *
Ethernet
10/100M Base-T x1 *
Remarks:
* This port’s function is related to firmware version.
Optional Accessory
+
AX3702 GNSS Antenna
3m GNSS antenna cable with TNC/SMA connectors
Tersus GNSS instrument transport case
BX316 GNSS Kit includes
2 x BX316 RTK receiver
2 x 2pin power cable
2 x 40pin external cable
2 x 5pin to USB Type A male cable
2 x UART to USB converter
3 x AX3702 GNSS antenna
3 x TNC-J to SMA cable 3m (GNSS antenna cable)
2 x 2W/460MHz radio
2 x 2W/460MHz radio antenna
1 x Bullet-DC to Alligator Clips
1 x USB to 2W-Radio-5pin cable with 2pin power & 6pin COM
1 x Bullet-DC to 2W-Radio-5pin cable with 2pin power & 6pin COM
1 x carrying case
  • BX316 GNSS Kit Datasheet
    Release Date: 2019-01-10 Version:1.0
  • Item List - BX316 kit
    Release Date: 2018-12-26 Version:1.0
  • User Manual For BX Series GNSS Receiver
    Release Date: 2018-07-03 Version:1.0
  • GNSS OEM Boards & Receivers Brochure
    Release Date: 2018-04-18 Version:2.0
BX316 Kit HRS Quick Start Video - Base+Rover
BX316 Quick Start Video - Collect Static Data
Demo of Logging Event Mark (BX316 GNSS RTK OEM Board)
Log data with external data logger
